Machine Dimension | 600(W) x 670(L)x430 (H)mm |
Size of Chamber | 30 Liters |
Size of Chamber | ø 300 x 430 mm |
Capacity of Chamber | 30 Liters |
Chamber shape & material | Round shape & stainless Steel |
Water tank | Max 6.5L (Usage 4.5L) |
Power | AC 220V, 50/60 Hz |
Power Consumption | 2.6 Kw (Band Heater 0.4Kw + Shield Heater 2.2Kw) |
Sterilization Temp & Pressure | 121°C (1.0Kg/cm²)-134°C (2.2kg/cm²) |
Vacuum Pump | Oil-less Vacuum Pump (40L/min) |
Sound Level During Operation | >75d B(A) |
Sterilization Time | 1-9 +/-1 (min) |
Dry Time | 1-9 +/-1 (Cycle) |
Vacuum Pressure | 550mmHg (International Spec.) |
Control System | Microprocessor |
Dry Type | Band Heater + Vacuum Pump |
Weight | 70kg |
Safety Functions | Safety valve, Overcurrent blocking (NFB), internal & External Overheating Sensor (EGO), Chamber Overheating Sensor, Auto door Lock S/W |
Option & Accessories |
|
Printer | Thermal Printer, Printer roll 57 x 30 m, Bluetooth communication |

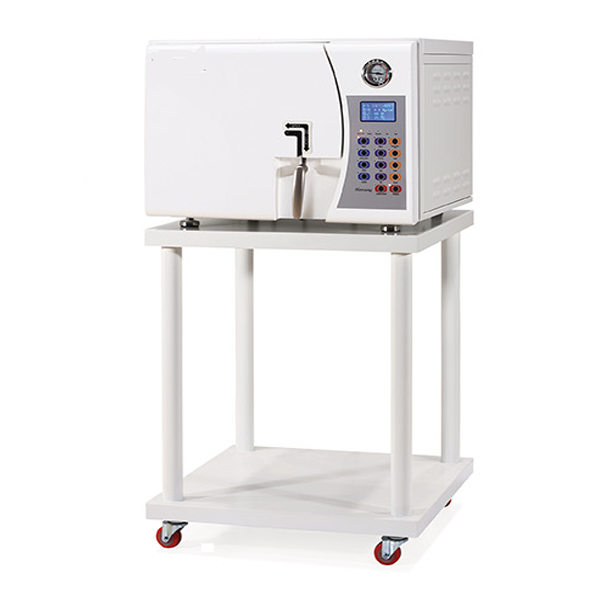

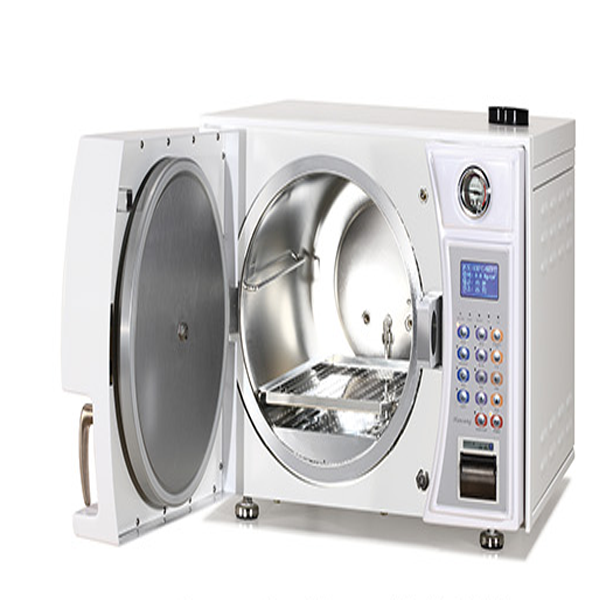

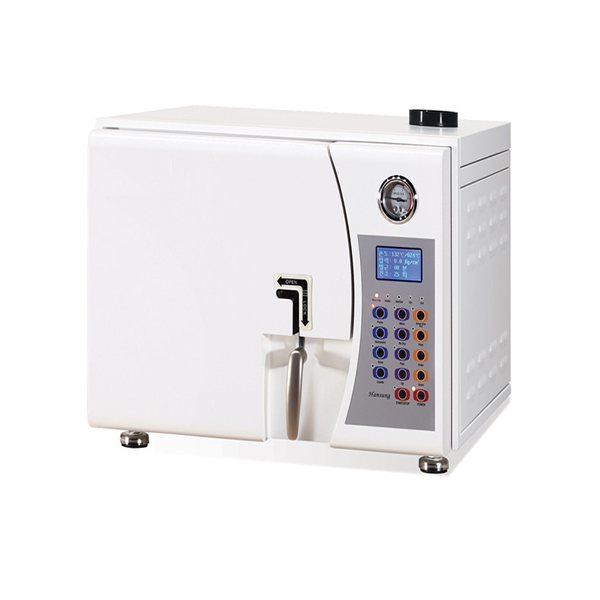

Autoclave Steam Sterilizer, Surgery Room Equipment
MV-A30
- Stainless steel Horizontal Chamber
- Pre-Programmed cycles for instruments, gloves, liquids
- Bowie-Dick and vacuum test programs
- Automatic regulation of Temperature
- Digital display of temperature and sterilization temperature
- Vacuum pump: sterilization with pre-vacuum
- Integrated printer for sterilization cycles traceability
- Safety in case of lack of water
- Adjustable volume water for each mode
- No door opening when performing sterilization cycles
- Possibility to stop the cycle any moment
- Audible indication at end of the cycle
- Safety against overheating and overpressure
- Automatic cut after on hour of no functioning state
- Luminous indicator for cycle starting
