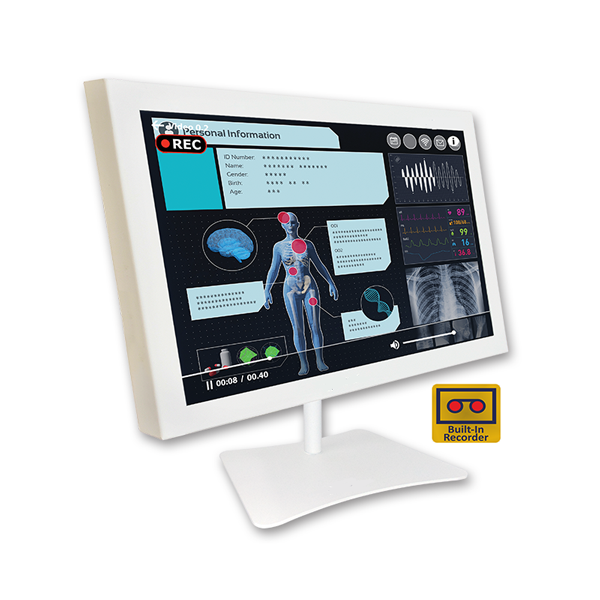

MV-DM21 with inbuilt recording system

  • 21.5″ Surgical Monitor with inbuilt recorder
  • Brightness: 300 cd/m2
  • Contrast: 3000:1
  • 1TB Internal Storage
  • Connectivity through USB, LAN, Wi-Fi, Bluetooth
  • Inputs: 3G-SDI / HDMI / DVI & VGA
  • Outputs: 3G-SDI / HDMI / VGA
SKU: MV-DM21 with inbuilt recording system Categories: ,
Resolution 1920 x 1080
Pixel Pitch 21.5″
Viewing Angle (H, V) 178°, 178°
Maximum Luminance 300 cd/m²
Contrast Ratio 3000:1
Color 16.7 Million
Response Time (Tr + Tf ) 18 ms


Video Inputs Signals

SDI/ HDMI/ DVI & VGA
(Please select one from above option)


Interface Port

Digital input: – SDI, HDMI Port, DVI
Analog input: – 15 Pin D-Sub


Video Output Signals

Digital output: HDMI
Analog output: VGA










Recording System

In-Built, fully integrated with Monitor
1TB storage (expandable to 2TB)
Simultaneous Recording & Video Display
Other Features-
Recording Start & Pause Button
Screenshot Button
USB for copying recorded videos
Ethernet for connectivity with Hospital / clinic network
Optional Features-
Wi-Fi, Bluetooth
Output Signal for connecting to slave/passive monitor
Power Requirements AC 100-240V
Power Consumption 85W Max
Power Saving EPA, VESA Standard
Operating Temperature 0 to +50°C
Storage Temperature -20 to +60°C
Relative Humidity 10% to 90% (Non-Condensing)
Housing Color White
Housing Material Metal
Mounting Standard VESA (100 mm)
