| Screen Technology | TFT AM LCD |
| Active Screen Size (Diagonal) | 27″ |
| Active Screen Size (H x V) | 597.6 x 336.15 mm |
| Aspect Ratio | 16:9 |
| Resolution | 1920 x 1080 |
| Pixel Pitch | 311.25 um |
| Viewing Angle (H,V) | 178°, 178° |
| Maximum Luminance | 350 cd/m² |
| Contrast Ratio | 3000;1 |
| Color | 16.7 Million |
| Response Time (Tr + Tf ) | 12 ms |
| Video Inputs Signals | SDI/ HDMI/ DVI & VGA |
| (Please select one from above option) | |
| Interface Port | Digital input:- SDI, HDMI Port, DVI |
| Analog input:- 15 Pin D-Sub | |
| Video Outputs Signals | Digital output: HDMI |
| Analog output: VGA | |
| Recorder | In-Built, fully integrated with Monitor |
| 1TB storage (expandable to 2TB) | |
| Simultaneous Recording & Video Display | |
| Other Features- | |
| Recording Start & Pause Button | |
| Screenshot Button | |
| USB for copying recorded videos | |
| Ethernet for connectivity with Hospital / clinic network | |
| Optional Features- | |
| Wi-Fi, Bluetooth | |
| Output Signal for connecting to slave/passive monitor | |
| Power Requirements (Nominal) | AC 100-240V |
| Power Consumption (Nominal) | 90W Max |
| Power Saving | EPA, VESA Standard |
| Operating Temperature | 0 to +50°C |
| Storage Temperature | -20 to +60°C |
| Relative Humidity | 10% to 90% (Non Condensing) |

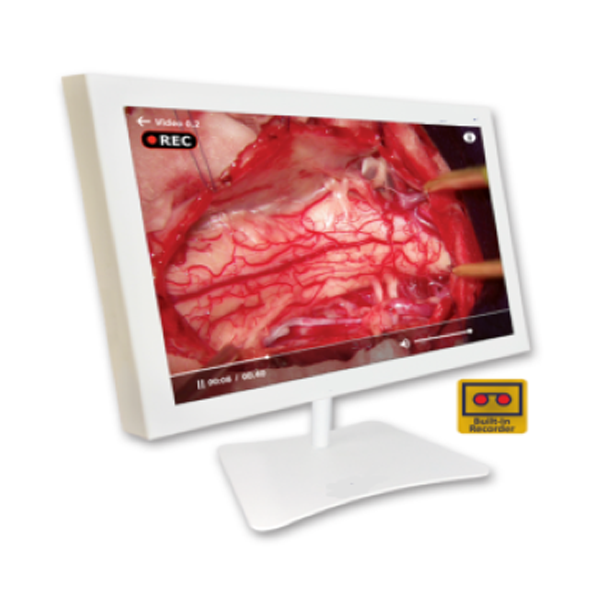

Medical Grade Monitor, Surgery Room Equipment
MV-DM27 with inbuilt recording system
- 27″ Surgical Monitor with Built-In Recorder
- Brightness: 350 cd/m2
- Contrast: 3000:1
- 1TB Internal Storage
- USB, LAN, Wi-Fi, Bluetooth
- Inputs: 3G-SDI / HDMI / DVI & VGA
- Outputs: 3G-SDI / HDMI / VGA
- Touch Screen –Optional
