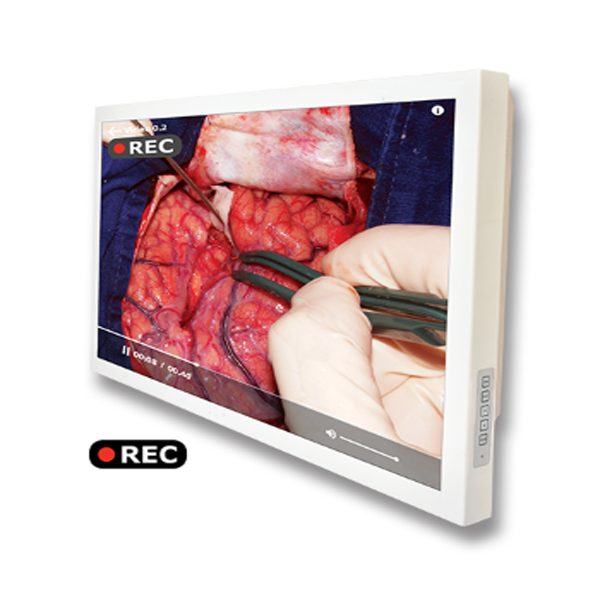

MV-DM32 with inbuilt recording system

  • 32″ Surgical Monitor with Built-In Recorder
  • Brightness: 500 cd/m2
  • Contrast: 3000:1
  • 1TB Internal Storage
  • USB, LAN, Wi-Fi, Bluetooth
  • Inputs: 3G-SDI / HDMI / DVI & VGA
  • Outputs: 3G-SDI / HDMI / VGA
  • Touch Screen –Optional
SKU: MV-DM32 with inbuilt recording system Categories: ,
Screen Technology TFT AM LCD
Active Screen Size (Diagonal) 32″
Active Screen Size (H x V) 698.4 (H) x 392.85 mm
Aspect Ratio 16:09
Resolution 1920 x 1080
Pixel Pitch 0.3637 mm
Viewing Angle (H,V) 178°, 178°
Maximum Luminance 500 cd/m²
Contrast Ratio 3000:01:00
Color 16.7 Million
Response Time (Tr + Tf ) 10 ms
Video Inputs Signals SDI/ HDMI/ DVI & VGA
(Please select one from above option)
Interface Port Digital input:- SDI, HDMI Port, DVI
Analog input:- 15 Pin D-Sub
Video Outputs Signals Digital output: HDMI
Analog output: VGA
Recording System In-Built, fully integrated with Monitor
1TB storage (expandable to 2TB)
Simultaneous Recording & Video
Display
Other Features-
Recording Start & Pause Button
Screenshot Button
USB for copying recorded videos
Ethernet for connectivity with Hospital / clinic network
Optional Features-
Wi-Fi, Bluetooth
Output Signal for connecting to slave/passive monitor
Power Requirements (Nominal) AC 100-240V
Power Consumption (Nominal) 79W Max
Power Saving EPA, VESA Standard
Operating Temperature 0 to +50°C
Storage Temperature -20 to +60°C
Relative Humidity 10% to 90% (Non-Condensing)
Housing Color White
Housing Material Metal
Mounting Standard Wall Mount & VESA (100 mm)
