MVECU5B

MVECU5B

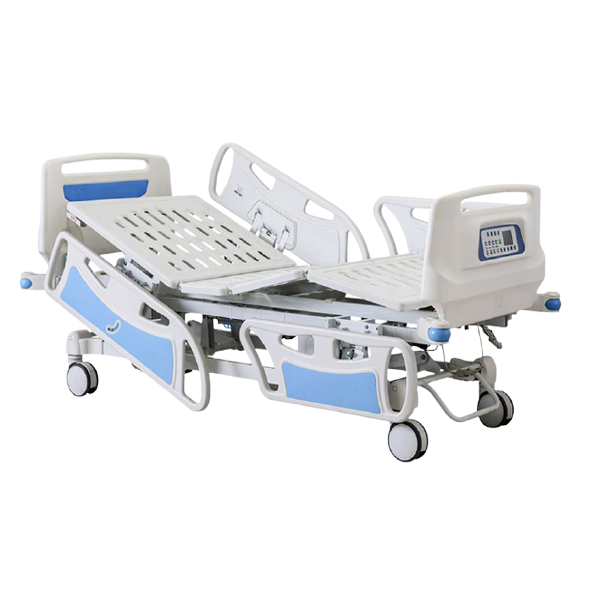

Electric ICU Bed with 5 Function
Overall Bed Size : 210 L x 90 W x 60-80 H cms.
Frame work made of rectangular M.S Tube.
ABS moulded head & foot panels.
Telescopic IV Rod with two location.

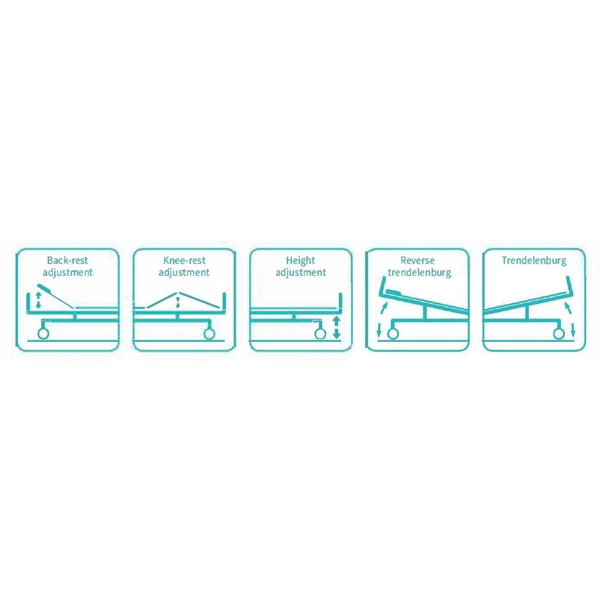

Backrest, Knee Rest Trendelenburg / Reverse Trendelenburg and Hi-Low Positions obtained by Electric Actuator operated by hand remote system.
4 Section top made of perforated MS Sheet.
Patient Bed capacity 150 Kg
ABS tuck away safety side railing.

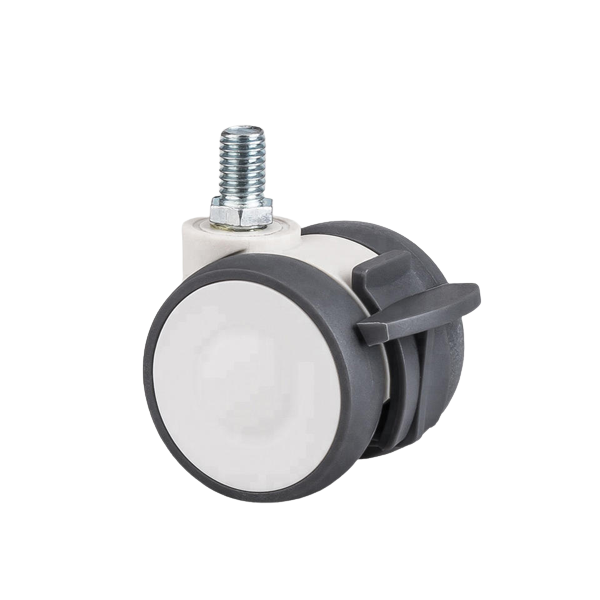

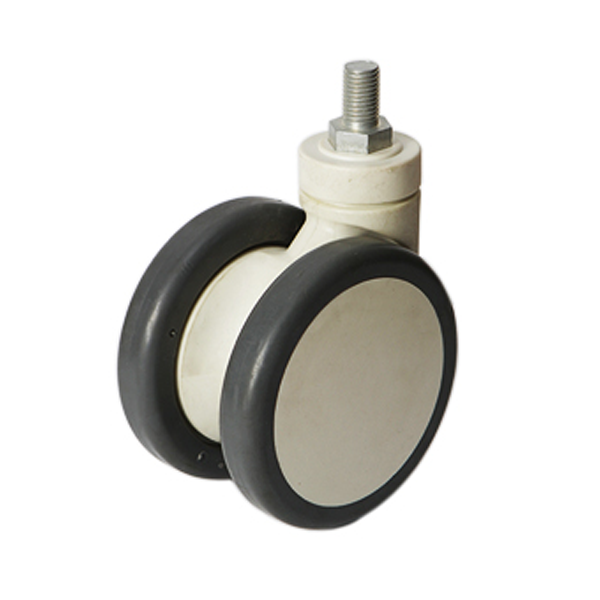

Bed mounted on 125 mm dia castor (two with brakes)
Finish : Epoxy Powder Coated.
Electrical Specifications input voltage of 100-240 V AC and 50 ~ 60 Hz + 10 %
Rechargeable Maintenance-free batteries for Power backup: 2×12 V.
Four corner rubber buffers for protection during transportation.
Optional : CPR Function on backrest section, ACP Control, Central Braking Castors, Manual Override, Nurse panel , Bed extender, x-ray cassette holder.

Overall Length	2100mm
Overall Width	900mm
Overall Height	600-800 mm
Trendelenburg	0-30°
Reverse Trendelenburg	0-15°
Leg Section Adjustment	0-35°
Back- rest Lifting	0-60°
Knee – rest Lifting	0-40°
Maximum Safe Load	150kg
Caster Diameter	125mm
CPR Function	Standard
Electric Specification Input	110-230V/50~60 Hz
Power Backup	12V x 2 Batteries
Switch Mode power supply operating range	90V to 300V; 47/63 Hz; Max 2A
