Length of Table Top | 2000 +/- 100 mm |
Width of Table Top | 550 +/- 50 mm |
Minimum Height without mattress | 700-750 mm |
Maximum Height without mattress | 1000-1100 mm |
Trendelenburg | 25-30° |
Reverse Trendelenburg | 25-30° |
Lateral Tilt | + 20-25° |
Back Section | + 80-90° |
Head Section | + 90° |
Leg Section | +20/-90° |
Flex/Reflex | 230/110º |
Power supply | 220V AC-50 Hz |
Floor Locking System | Pedal foot brake/Central locking through remote |

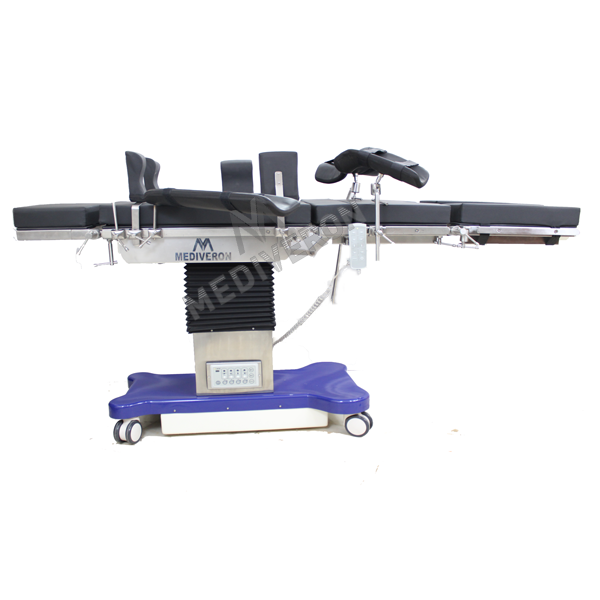

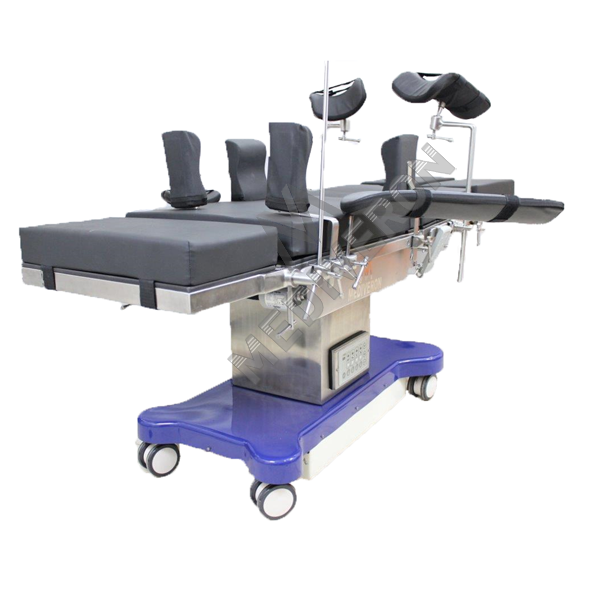

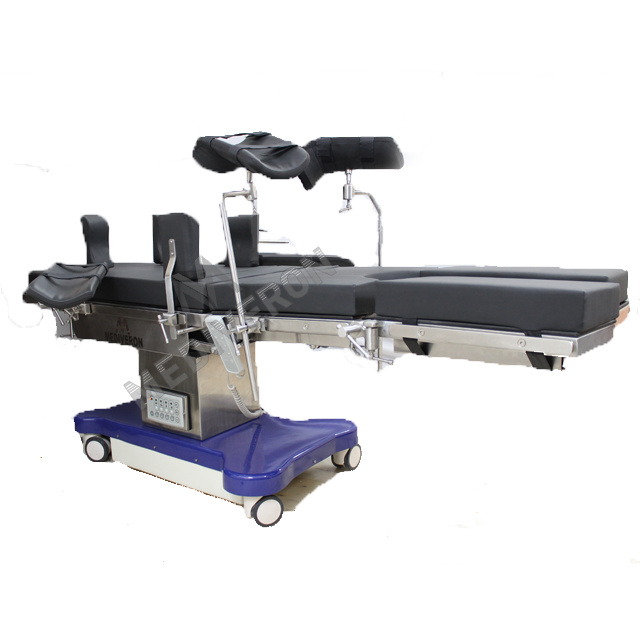

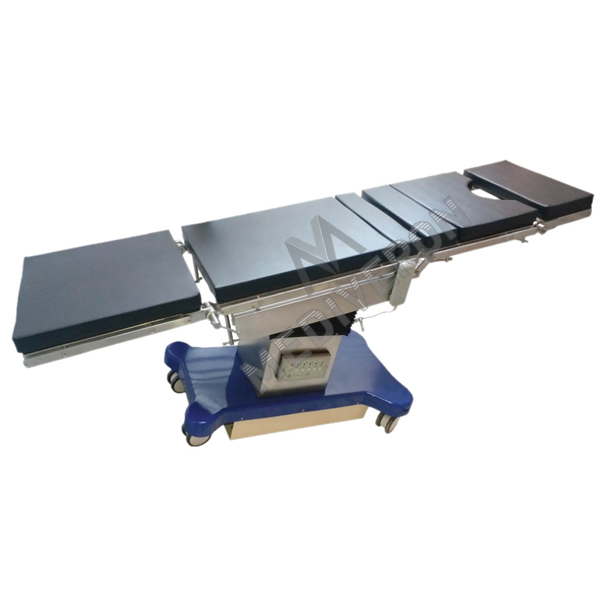

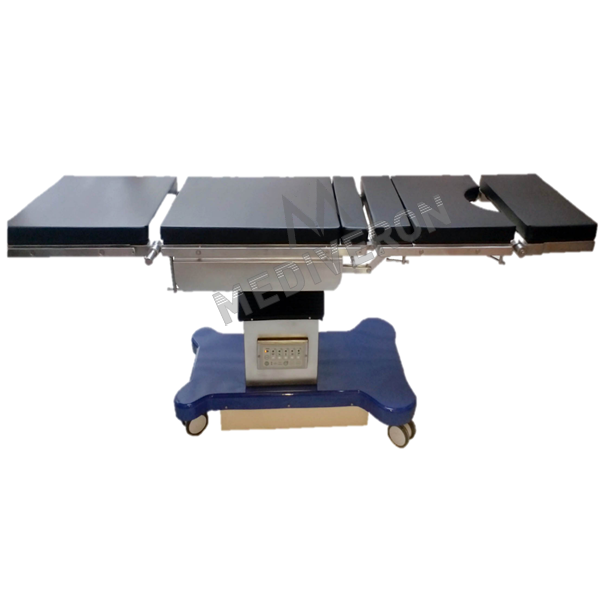

Operation Theatre Table, Surgery Room Equipment
MV-EM Series
- C-Arm Compatible Electric Operating Table.
- Complete table body made of SS 304.
- Base cover made of attractive easy to clean Fibre base.
- Five/Six Section Radio-translucent table top.
- Removable Head, Leg and Pelvic section.
- Inbuilt Kidney bridge.
- B chair position.
- Complete functionality with remote controlled height adjustment
- Flex & reflex
- Lateral Tilt adjustment
- Trendelenburg and Reverse Trendelenburg.
- Emergency over-ride control panel on the center column (optional).
- Manual Override control system (optional).
- Zero position by single press of a button.
- Battery back-up system in case of of a power failure.
- Safe working load capacity uopto 200-250 kg.
- Heavy duty castors with braking.
- Anti-static removable mattress with 50-80 mm thickness for patient comfort.
- Suitable for all types of surgeries including Orthopedic, Neuro-surgery, Urology, Gynecology, Ophthalmology, Laparoscopy.
